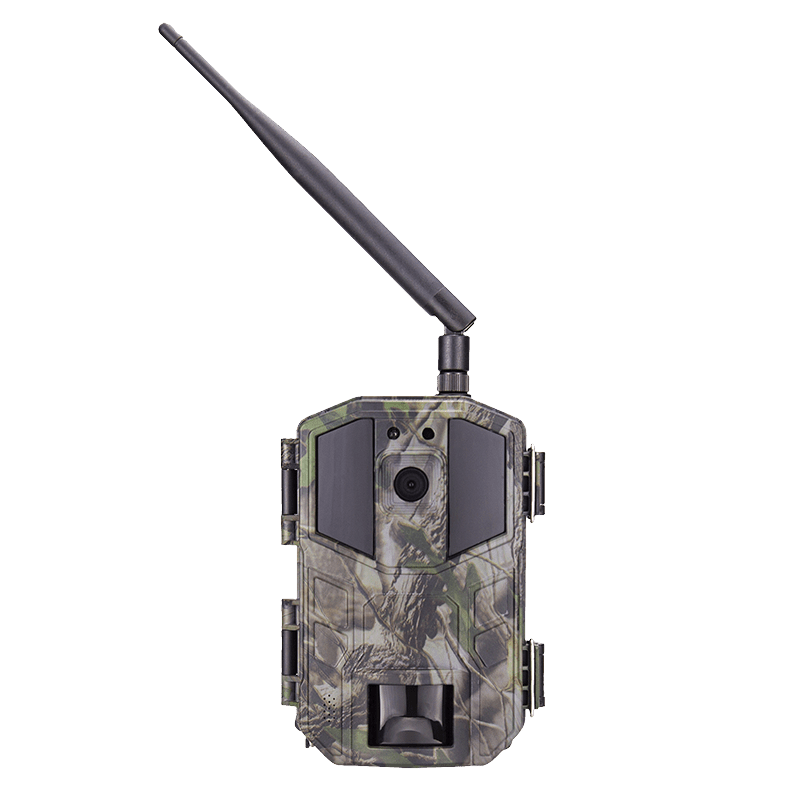

◆Support 4G-LTE network ◆Remote access ◆remote transmission ◆Two-way awakening ◆Support mobile APP ◆Cloud storage ◆Live broadcast ◆14.0MP ◆2.7K ◆H.265 ◆0.5s trigger time ◆IP66 ◆Infrared night vision ◆Automatic working ◆Dual power supply （Built-in AA battery and supports external power supply）
| Item | Spec. |
| Image Sensor | GC4653，CMOS 4.0MP ，Max 14.0MP(interpolation) |
| DSP | Ingenic，T31 |
| Storage Media | Support SD card, Max to 128GB |
| Lens | F=2.5 f=8.7mm |
| Trigger time | 0.5s |
| IR leds | 940nm/40pcs |
| PIR sensitivity | Adjustable（High/Middle/Low） |
| PIR distance | 0~20m |
| PIR angle | 90° |
| PIR delay | 10s~5min（Optional） |
| Screen | No，Display by the phone |
| Working Mode | Photo mode/Video mode |
| Photo resolution | Format：JPEG Resolution：14.0MP(interpolation) |
| Video resolution | Format：MP4， H.265 Resolution：2.7K |
| Video Length | 5s |
| MIC | Yes, Built-in |
| Speaker | Yes, Built-in |
| Remote operation | Support, mobile phone remote operation，Two-way awakening |
| Mobile APP | Yes，UCON |
| Live broadcast | Yes |
| Cloud storage | Yes |
| Working voltage | DC 12V |
| Battery | 8pcs AA batteries |
| External power | DC 12V，1.5A |
| SIM card | Nano SIM card |
| 4G LTE cellular | European:LTE-FDD:B1/B3/B5/B7/B8/B20 LTE-TDD:B38/B40/B41; HSPA:B1/B5/B8 ;GSM:900/1800 If used in other regions, the corresponding 4G module needs to be replaced North America:If used in other regions, the corresponding 4G module needs to be replaced |
| System language | Automatic switching with mobile phone system |
| Standy-by time | 150days（8pcs AA batteries） |
| Working temperature | -10°C~40°C |
| Storage temperature | -20°C~60°C |
| Waterproof level | IP66 |
| Dimensions | 105（L）×69（W）×342（H）mm (including antenna) |
| Weight | 297±5g(exclude battery） |
